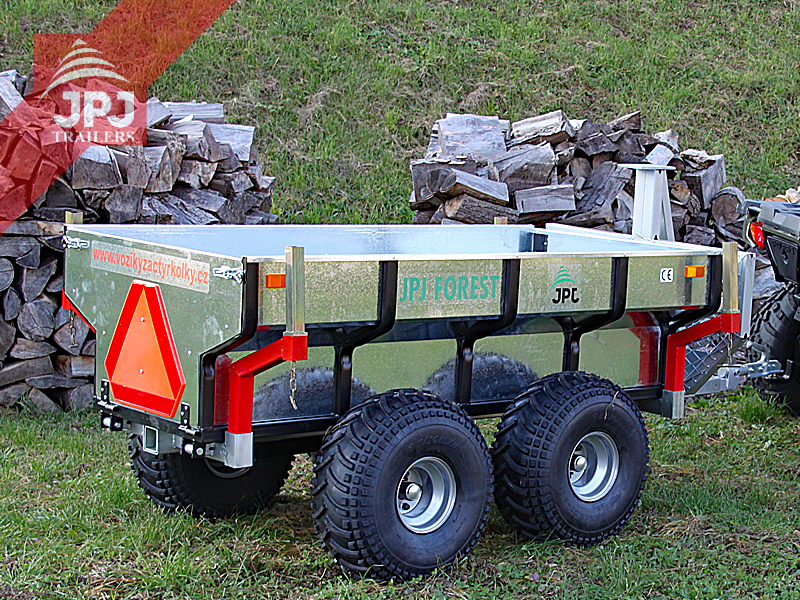

Additional accessories for the ATV trailer Worker:
Option to purchase tires, including discs, separately: Tires, including discs
Current prices and availability are available in our main online shop, JPJForest.cz.
| Load capacity | 1 000 kg |
|---|---|
| Weight | 250 kg |
| Overall dimensions of the trailer (L x W x H) | 300 x 125 x 134 cm |
| Body dimensions (L x W x H) | 200 x 100 x 50 cm |
| Body volume | approx. 725 l |
| Wheel size | 22 x 12 - 8 |
| Wheel bearings | double tapered |
| The possibility of road-approval for operation on public roads | YES |
| In case of approval of the trailer for use on public roads - total weight in the Technical Certificate | 800 kg |
| Body material/thickness | galvanized steel sheet/1,3 mm |
| Drawbar length from front face | 94 cm |
| Optimal height of the towing device from the ground | 30 - 40 cm |
| Raised sideboards | optional accessory |
| The type of trailer suspension equipment included in the price | ISO 50 |
| Approval category | R1a |
|---|---|
| Max. speed | 40km/h |
| Registration at the local transport department | issuing registration papers + a license plate |
| Price | Price in our online shop |
| Ski dimensions | 162 x 31 x 21 cm |
|---|---|
| Weight | 40 kg |
| Weight capacity | 1 000 kg |
| Price | Price in our online shop |
| Full opening | 48 cm |
|---|---|
| Weight bearing capacity | 340 kg |
| Weight | 3,4 kg |
| Price | Price in our online shop |
| Load capacity | 1 000 kg |
|---|---|
| Weight | 250 kg |
| Overall dimensions of the trailer (L x W x H) | 300 x 125 x 195 cm |
| Price | Price in our online shop |
| Load capacity | 600 kg |
|---|---|
| Weight | 260 kg |
| Overall dimensions of the trailer (L x W x H) | 270 x 120 x 175 cm |
| Price | Price in our online shop |
| Load capacity | 400 kg |
|---|---|
| Weight | 140 kg |
| Overall dimensions of the trailer (L x W x H) | 211 x 125 x 120 cm |
| Price | Price in our online shop |
| Load capacity | 1 000 kg |
|---|---|
| Weight | 250 kg |
| Overall dimensions (L x W x H) | 300 x 125 x 134 cm |
| Price | Price in our online shop |
For current prices, our product range and contact details, visit our main online shop, JPJForest.cz. Please direct all enquiries and orders there.
