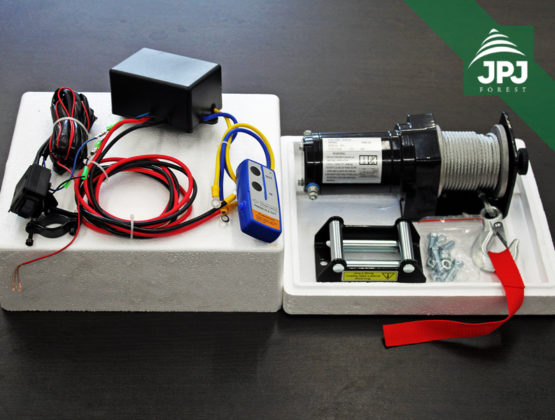

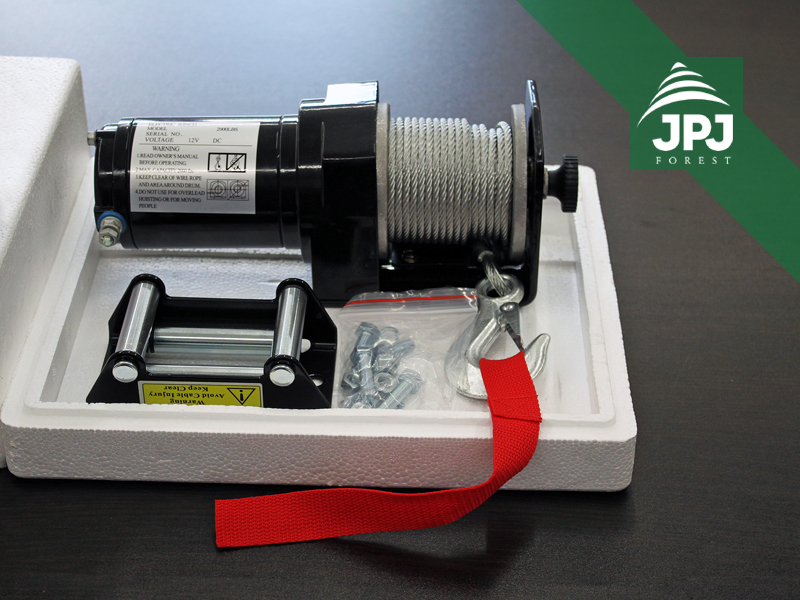

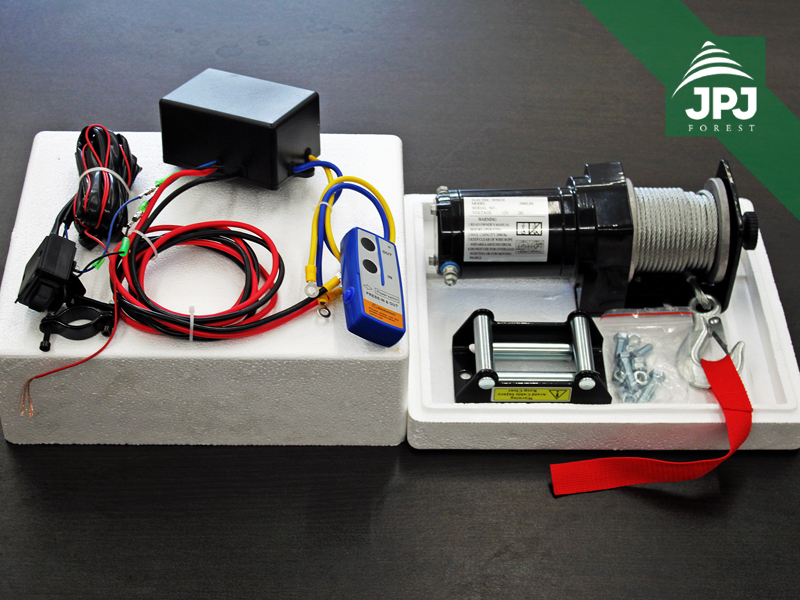

Electric winch JPJ 2 is an ideal accessory not only for ATV trailers for work quads.
Each set includes:
• steel rope
• hook

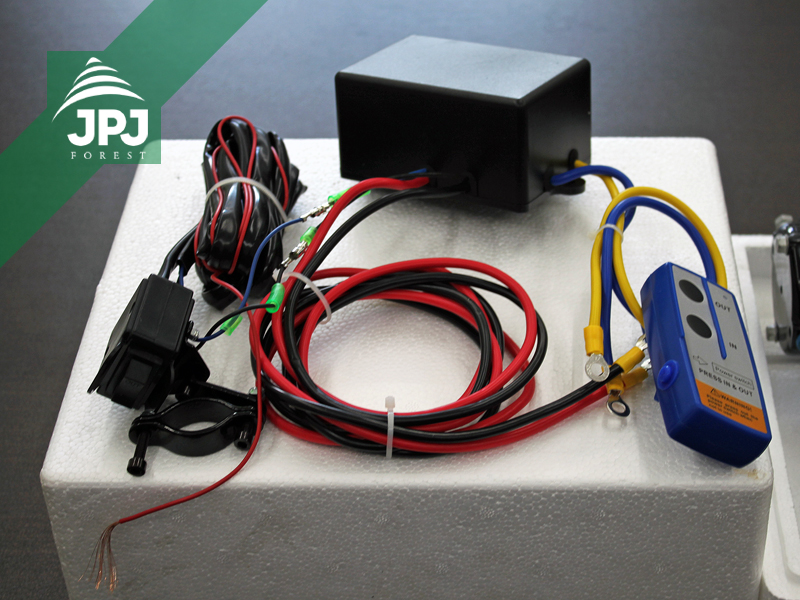

• control set with cables
• roll
• handlebar switch
• universal mounting plate
• wireless remote control (range 30 m)
• fixing screws
• wiring is already part of the package – the winch can therefore be easily connected directly to the ATV’s battery
| Overall dimensions | 285 x 105 x 105 mm |
|---|---|
| Weight | 10 kg |
| Tractive force | 906 kg |
| Engine | DC 12V, 1 hp |
| Cable | 15 m, Ø 4 mm |
| Gear ratio | 153 : 1 |
| Drum dimensions | Ø 31.5 mm, length 73 mm |
| Control | wireless remote control |
| Operating voltage | 12V |
| Overall dimensions | 300 x 105 x 105 mm |
|---|---|
| Weight | 10 kg |
| Tractive force | 907 kg |
| Price excl. VAT | 85,-€ |
| Overall dimensions | 300 x 105 x 105 mm |
|---|---|
| Weight | 12 kg |
| Tractive force | 1 361 kg |
| Price excl. VAT | 140,-€ |
| Pulling force | 1 150 kg |
|---|---|
| Cable length | 5 or 10 m |
| Cable diameter | 5 mm |
| Price excl. VAT | 28,-€ |
| Weight capacity | 250 kg |
|---|---|
| Rope length | 3 m |
| The thickness of the rope | 5 mm |
| Price excl. VAT | 175,-€ |
If you are interested in any of the products we offer or if you have any questions, do not hesitate to contact us.
